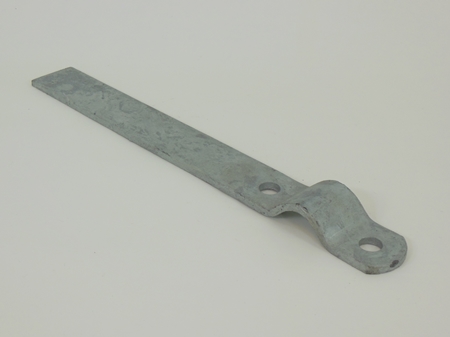

Fig. 116

Meest gebruikt in combinatie met halve kapbeugel, fig.101. Dient apart besteld te worden.

12 0

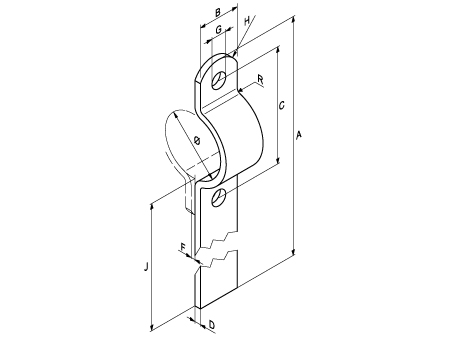

		Inch	DN	A	B x D	C	F	G	H	R	J
	57			301	40 x 6	105	5	14	22	6	200	0.64	M12x40
	60	2	50	305	40 x 6	110	5	14	22	6	200	0.66	M12x40
	63			308	40 x 6	113	5	14	22	6	200	0.66	M12x40
	66			311	40 x 6	115	5	14	22	6	200	0.66	M12x40
	70			316	40 x 6	122	5	14	22	6	200	0.7	M12x40
	76	2 1/2	65	321	40 x 6	125	5	14	22	6	200	0.72	M12x40
	80			326	40 x 6	132	5	14	22	6	200	0.74	M12x40
	83			329	40 x 6	135	5	14	22	6	200	0	M12x40
	89	3	80	335	40 x 6	140	5	14	22	6	200	0.76	M12x40
	95			340	40 x 6	145	5	14	22	6	200	0.78	M12x40
	102	3 1/2	90	401	40 x 8	160	5	14	38	10	250	1.1	M12x40
	108			409	40 x 8	170	5	14	38	10	250	1.11	M12x40
	114	4	100	415	40 x 8	175	5	14	38	10	250	1.12	M12x40
	120			420	40 x 8	180	5	14	38	10	250	1.13	M12x40
	127			426	40 x 8	185	5	14	38	10	250	1.16	M12x40
